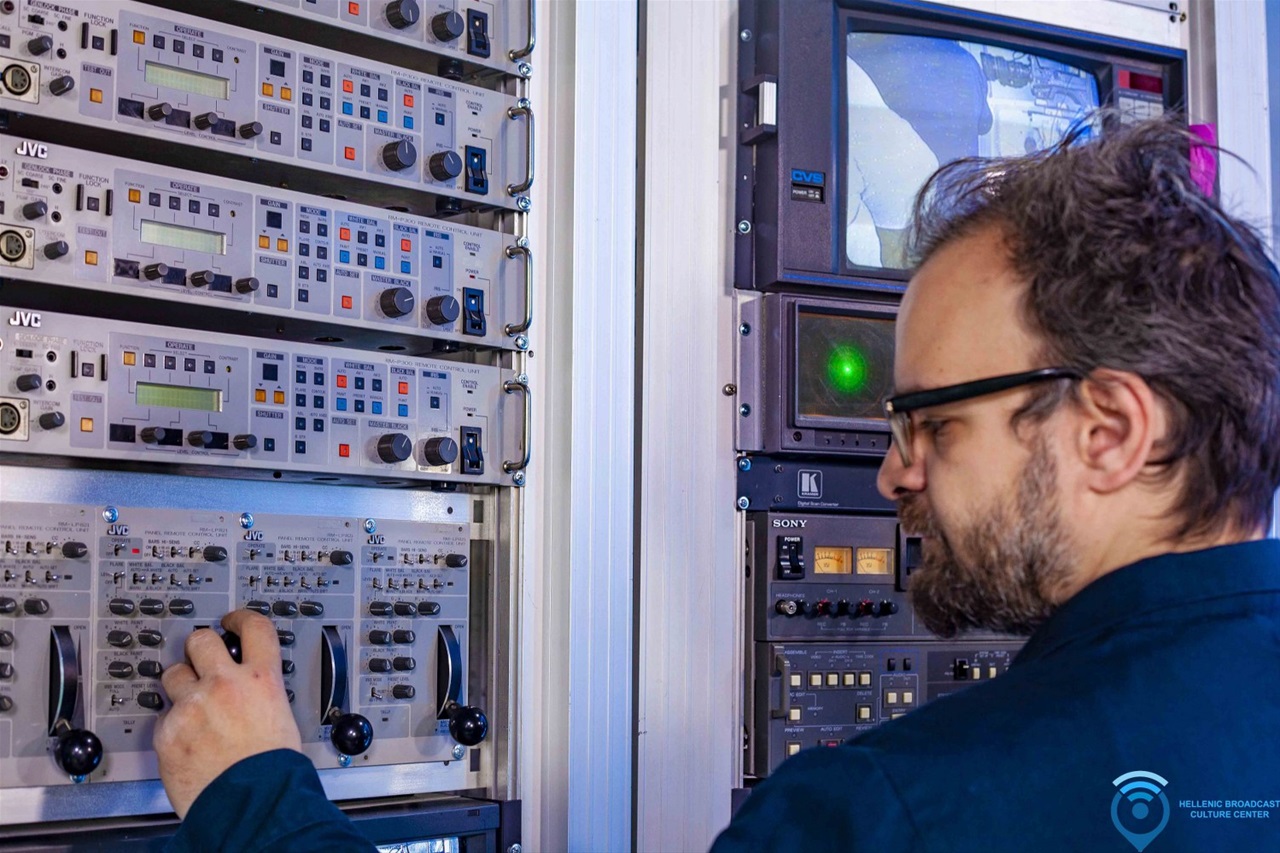

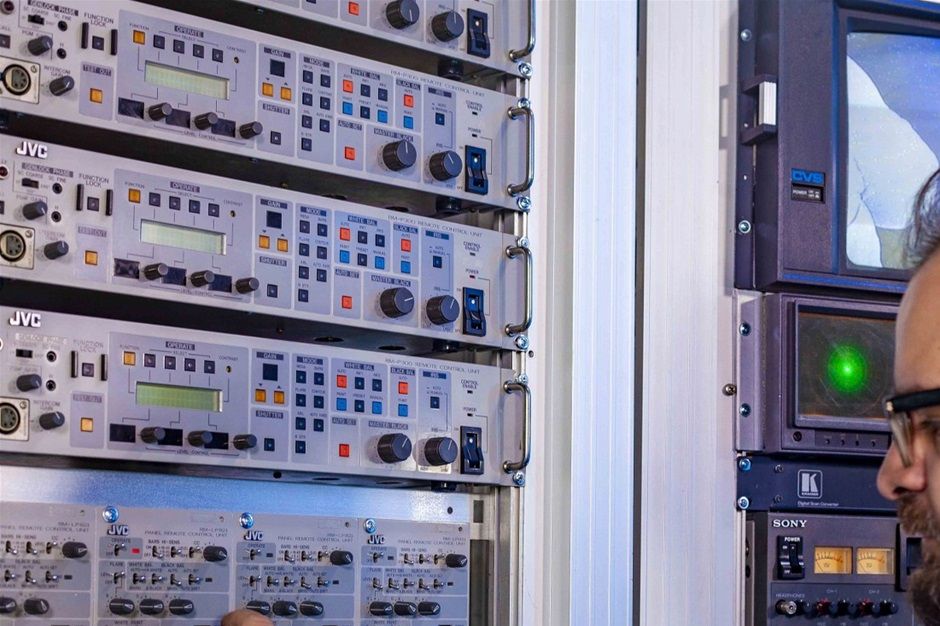

5 x JVC RM-P300U Multicore Remote Control CCU
RM-P300U DELUXE LONG DISTANCE CAMERA CONTROL UNIT
The RM-P300U is a deluxe, multi-function camera control unit recommended for long distances or where extra control functions are required. (Some functions are only effective with KY-35U and KY-90U broadcast cameras.)

* Extension Possible up to 300 m (1,000 ft) A 300m extension between camera and RM-P300U can be set up using optional VC-P11OU series camera cables, with the remote control unit powering the camera.

* Built-in GENLOCK GENLOCK operation is possible with a composite video signal (VBS) or black burst (BB) signal. SC phase and H phase can be adjusted on the front panel.

* Multiple Outputs The RM-P300U has two output connectors for composite video signals. You can also output one of the following signals according to switch setting at the camera adapter. Y/C signal for S-VHS, Y/R- Y/B-Y component signal for MII or Betacam. and RGB signals.

* LCD Panel and Digital Rotary Encoders The LCD panel on the front face keeps the user informed of various functions, and the digital rotary encoders allow precise easy adjustments.

* Joystick Control Unit RM-LP821U An optional joystick control unit RM-LP821U is connectable for studio/ OB Van applications.

SPECIFICATIONS

Output signals Composite video signal : 1 Vp-p, 75R (with Sync) Test video signal : ENC; 1Vp-p, 75ê (with Sync) B; 0.7Vp-p, 75ê (without Sync) G; 0.7Vp-p, 75ê (without Sync) R; 0.7Vp-p, 75ê (without Sync) RET; Selected using button's on front panel R/G/B signal : 0.7Vp-p, 75ê (without Sync) Y/R-Y/B-Y signal : Y; 1Vp-p, 75ê (with Sync) R-Y/B-Y; 0.486Vp-p or 0.7Vp-p, 75ê Y/C 358 signal : Y; 1.0Vp-p, 75ê (with Sync), C; 0.286Vp-p, 75ê (Burst level) (R/G/B, Y/R-Y/B-Y, YC 358 should be selected at camera head. The primary output is R/G/B.) Intercom signal : 2-wire system; -10dB, 600Q, balanced; 4-wire system; OdB, 600ê, balanced

Audio output : -20dBm, 600ê, balanced Input signals Genlock signal : VBS : 1Vp-p,75ê BB : 0.43Vp-p, 75ê (bridge connectable) AUX signal : VBS or VS: 1Vp-p, 75ê (bridge connectable) Intercom signal : 2-wire system; -10dB, 600ê, balanced; 4-wire system; OdB, 600ê, balanced AUX audio: -4dB, 20kê, unbalanced Tally signal : Contact or power (5 - 24V DC or 6V AC) Power supply : 120V AC, 60 Hz Ambient temperature : -10øC to +45øC (14øF to 113øF) Power consumption : 27W (RM-P300U only) 115W max. (with camera and viewfinder) Weight : 6.8 kg (15 lbs)
